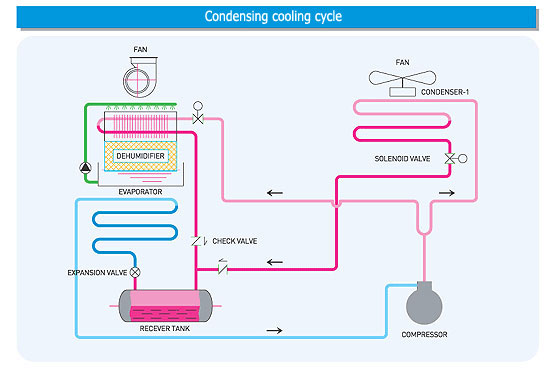

HVAC System Summary What is a condensing air conditioner? A condensing air conditioner enables water temperature increase, humidity control, and air heating without a separate energy source as a condenser collects heat energy emitted in the air during the operation of the air conditioner. Condensing air conditioner is highly effective for clean rooms and constant temperature/humidity rooms. Excellent energy saving effect (up to 55% reduction in electricity bill) Collects used heat from condenser and uses the heat as a heating source for humidifier water, therefore, does not require separate energy source. Re-heater necessary for humidity control during the summer also does not require a separate energy source. Both of these air conditioner attributes contribute in greatly reducing electricity bills. Used heat disposed from Precise temperature and humidity control A smart controller senses outdoor and indoor temperature/humidity and operates in optimal condition accordingly. Excellent germicidal effects Germicidal UV lamp prevents bacteria from spreading inside of humidifier and fungus from forming. Yellow dust and fine particle removal Cleans fine particles in the air and yellow dust during the spring with water for extra clean air. A humidifier that operates based on natural mechanism!   Hybrid humidifier!    High-efficiency humidifier Dry air contacts the water that flows inside of humidifier filter; air temperature does not change and high relative humidity is maintained. Clean humidification with natural mechanism Does not heat water and employs natural phenomenon to completely vaporize the air as it passes through humidifier filter; free of white powders. Removes harmful gases Odors and harmful gases are filtrated as the air passes through a humidifier filter formed by water film; the filtered substances are discharged to the drain. Convenient maintenance Simple structure and lack of heating source enables convenient maintenance free of need for water treatment. Cooling tunnel Dry air passes through a filter with large humidifier surface area and touches water film of the filter-Cooling/humidifying method based on sensible heat of the air.
