Condensing Unit

Feature

1) HP Application: 1~50HP
2) Refrigeration: -5 ¡É ~ -15 ¡É
3) Suitable for out-door installation: Propeller Fan of high-efficiency/low-noise level & Condenser Fan Motor
4) H.P.S., D.P.S., F.S.C. : Prevents damages of compressor and system unit caused by overload
5) Ideal for application to convenience stores, restaurant kitchens, walk-in coolers/freezers, etc.
6) Special specifications available



Standard Specification

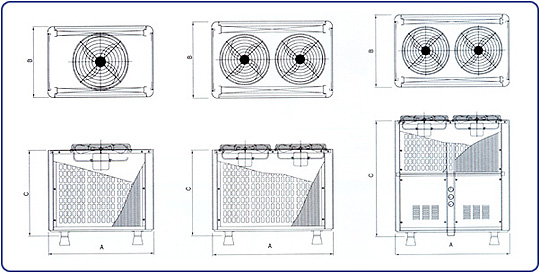

Model
A
B
C
Motor
(KwxP)
Pipe Size
Air volum(CMM)
Staticpre.
(mmAq)
Type
Suction
Liquid
RC-2HP
815
705
750
0.2x6
1/2"
3/8"
44
6
H
   RC-3HP
815
705
750
0.2x6
1/2"
3/8"
66
6
H
RC-5HP
955
755
950
0.4x6
3/4"
1/2"
120
6
H
RC-7.5HP
1155
805
755
0.75x6
3/4"
5/8"
175
6
H
RC-10HP
1455
755
1050
0.4x6
3/4"
5/8"
230
6
H
RC-15HP
1605
1005
1890
0.4x6
3/4"
5/8"
330
6
H
RC-20HP
2005
1005
1890
0.75x6
3/4"
5/8"
440
6
H
