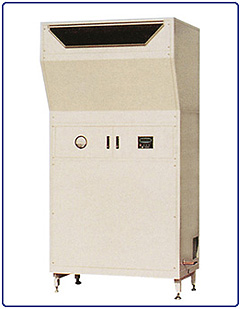

 Air Control Unit

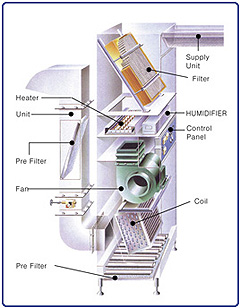

ACU Clean Room System can quaratee class grat can quaratee class 1,000 whitout gratings on the floor ,ACU provideds
constant, very stabilized air flow by type supply dust installed on the false ceiling.

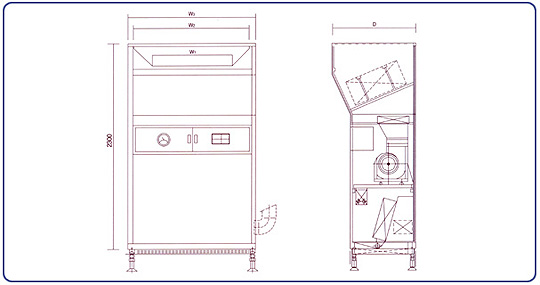

 Dimension
| Type |
W1 |
W2 |
W3 |
D |
| ACU-30 |
545 |
885 |
1050 |
770 |
| ACU-50 |
750 |
1090 |
1250 |
915 |
| ACU-75 |
900 |
1240 |
1400 |
915 |
Srandard Specification
| Model
No. |
ACU-30 |
ACU-50 |
ACU-75 |
ACU-100 |
| Air
Vel.(CMM) |
30 |
50 |
75 |
100 |
| Fan
Size |
1¨ö(S.S)x2 |
1¨ö(S.S)x2 |
1¨ö(D.S)x2 |
2¨ö(D.S) |
| Fan
Motor(KW) |
0.75 |
1.5 |
2.2 |
2.2 |
| Cooling
Cap.(Kcal/h) |
8,400 |
14,300 |
21,500 |
27,000 |
| Heating
Cap.(Kcal/h) |
6,400 |
10,750 |
15,480 |
17,200 |
| Elec.Heater(KWxStep) |
1.85x4 |
3.2x4 |
4.5x4 |
5x4 |
| Humidifier
Cap.(Kg/h) |
2.4 |
3.6 |
4.8 |
6.0 |
| PanType(KWxSTEP) |
2 |
3 |
2x2 |
3x2 |
| HEPA
Filter |
99.97%(0.3Micron by D.O.P.Test) |
| PRE-Filter |
AFI 85%(Thicknees 50mm) |
| Control |
Humidistat, Cooling, Solenoid Valve,
Expansion Valve |
| Main
N.F.B. |
50A |
75A |
125A |
150A |
| Full
Load(KW) |
10.65 |
18.15 |
26.3 |
33.9 |
| Dimension(mm) |
1,050x570x2,300 |
1,250x715x2,300 |
1,400x715x2,300 |
1,600x800x2,300 |
| Sound
Level(dB) |
50~60 |
| Power
Source |
3Øx220V/380Vx60Hz |
| Note:
Cooling (D.X coil)
|
|
