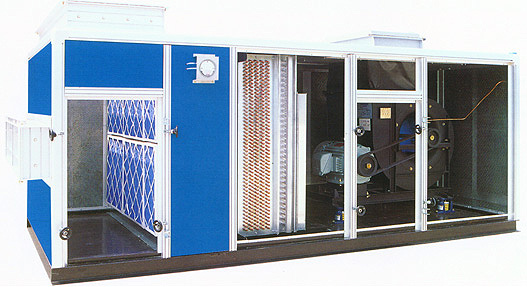

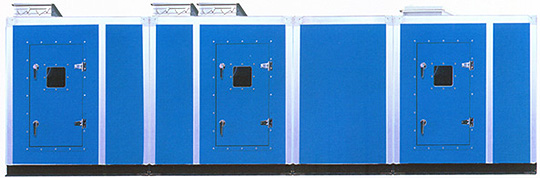

Air Handling Unit
Summery|
1) Excellent adiabatic effect (Heat loss is dramatically decreased using the Hard polyurethane Panel with the process of high pressure and foaming) 2) Outstanding endurance, adaptability to the environment. 3) Brief assembling and disassembly. 4) Saving energy by setting a ventilator with the highest degree of efficiency. |
Standard SpecsAH 50 |
AH 80 |
AH 110 |
AH 120 |
AH 165 |
AH 200 |
|||
| Air Vlume(CMM) | 50 | 80 | 110 | 120 | 165 | 200 | ||
| Siupply Fan | Staic Pessure(mmAq) |
80 | 80 | 80 | 90 | 90 | 90 | |
| 2 | 2 | 2¨ö | 2¨ö | 3 | 3 | |||
| Return Fan |
Staic Pessure(mmAq) |
45 | 45 | 45 | 45 | 50 | 50 | |
| Fan No # | 2 | 2 | 2 | 2 | 2¨ö | 2¨ö | ||
Coil |
Area |
Kcal/h (2.7m/s) |
0.32 | 0.53 | 0.73 | 0.84 | 1.1 | 1.33 |
| Size | LxHxSTEP | 600 X 533 |
800 X 533 |
1200 X 610 |
1000 X 838 |
1400 X 838 |
1600 X 838 |
|
Colling |
Kcal/h | 21,000 | 34,000 | 46,000 | 50,000 | 69,000 | 84,000 | |
| Range | 14,000 ~ 21,000 |
22,000 ~ 34,000 |
35,000 |
47,000 ~ 50,000 |
51,000 ~ 69,000 |
70,000 ~ 84,000 |
||
Colling |
Kcal/h | 25,000 | 40,000 | 54,000 | 59,000 | 81,000 | 99,000 | |
| Range | 15,000 ~ 25,000 |
26,000 ~ 40,000 |
41,000 ~ 54,000 |
55,000 ~ 59,000 |
60,000 ~ 81,000 |
82,000 ~ 99,000 |
||
| Colling (4Row) |
Kcal/h | 31,000 | 50,000 | 68,000 | 74,000 | 102,000 | 124,000 | |
| Range | 15,000 ~ 31000 |
32,000 ~ 50,000 |
51,000 ~ 68,000 |
69,000 ~ 74,000 |
75,000 ~ 102,000 |
103,000 ~ 124,000 |
||
AH 220 |
AH 260 |
AH 330 |
AH 335 |
AH 420 |
AH 485 |
|||
| Air Vlume(CMM) | 220 | 260 | 330 | 335 | 420 | 485 | ||
| Siupply Fan | Staic Pessure |
90 | 90 | 90 | 90 | 90 | 90 | |
| 3 | 3¨ö | 4 | 4 | 4¨ö | 5 | |||
| Return Fan |
Staic Pessure (mmAq) |
50 | 50 | 50 | 50 | 50 | 50 | |
| Fan No # | 3 | 3 | 3¨ö | 3¨ö | 4 | 4 | ||
| Coil Cap. |
Area (m 2) |
Kcal/h (2.7m/s) |
1.45 | 1.73 | 2.2 | 2.23 | 2.8 | 3.23 |
| Size | LxHxSTEP | 1600 X 914 |
1600 X 1143 |
1800 X 1219 |
2000 X 1219 |
2200 X 1295 |
2400 X 1372 |
|
| Colling (6Row) |
Kcal/h | 92,000 | 109,000 | 138,000 | 140,000 | 176,000 | 203,000 | |
| Range | 85,000 ~ 92,000 |
93,000 ~ 109,000 |
110,000 ~ 138,000 |
139,000 ~ 140,000 |
141,000 ~ 176,000 |
178,000 ~ 203,000 |
||
| Colling (2Row) |
Kcal/h | 108,000 | 128,000 | 162,000 | 165,000 | 207,000 | 238,000 | |
| Range | 100,000 ~ 108,000 |
109,000 ~ 128,000 |
129,000 ~ 162,000 |
163,000 ~ 185,000 |
166,000 ~ 207,000 |
208,000 ~ 238,000 |
||
| Colling (4Row) |
Kcal/h | 136,000 | 161,000 | 204,000 | 207,000 | 260,000 | 300,000 | |
| Range | 125,000 ~ 136,000 |
137,000 ~ 161,000 |
162,000 ~ 204,000 |
205,000 ~ 207,000 |
208,000 ~ 260,000 |
261,000 ~ 300,000 |
||
AH 500 |
AH 555 |
AH 580 |
AH 665 |
AH 745 |
AH 785 |
|||
| Air Vlume(CMM) | 500 | 555 | 580 | 665 | 745 | 785 | ||
| Siupply Fan | Staic Pessure (mmAq) |
70 | 90 | 90 | 100 | 100 | 100 | |
| 5 | 5¨ö | 5¨ö | 5¨ö | 6 | 6 | |||
| Return Fan |
Staic Pessure (mmAq) |
50 | 50 | 50 | 50 | 80 | 80 | |
| Fan No # | 4¨ö | 5 | 5 | 5 | 5¨ö | 5¨ö | ||
| Coil Cap. |
Area (m 2) |
Kcal/h (2.7m/s) |
3.33 | 3.7 | 3.86 | 4.43 | 4.96 | 5.23 |
| Size | LxHxSTEP | 2400 X 1372 |
2200 X 838 X 2 |
2200 X 914 X 2 |
2400 X 914 X 2 |
2400 X 1067 X 2 8 |
2600 X 1067 X 2 |
|
| Colling (6Row) |
Kcal/h | 209,000 | 232,000 | 243,000 | 278,000 | 312,000 | 328,000 | |
| Range | 204,000 ~ 209,000 |
210,000 ~ 232,000 |
233,000 |
244,000 ~ 278,000 |
279,000 ~ 312,000 |
313,000 ~ 328,000 |
||
| Colling (2Row) |
Kcal/h | 246,000 | 273,000 | 285,000 | 327,000 | 366,000 | 386,000 | |
| Range | 15,000 ~ 25,000 |
26,000 ~ 40,000 |
41,000 ~ 54,000 |
55,000 ~ 59,000 |
60,000 ~ 81,000 |
82,000 ~ 99,000 |
||
| Colling (4Row) |
Kcal/h | 309,000 | 343,000 | 358,000 | 411,000 | 460,000 | 485,000 | |
| Range | 301,000 ~ 309,000 |
310,000 ~ 343,000 |
344,000 ~ 358,000 |
359,000 ~ 411,000 |
412,000 ~ 460,000 |
461,000 ~ 485,000 |
||
AH 875 |
AH 900 |
AH 1000 |
AH 1120 |
AH 1250 |
AH 1500 |
|||
| Air Vlume(CMM) | 875 | 900 | 1000 | 1120 | 1250 | 1500 | ||
| Siupply Fan | Staic Pessure (mmAq) |
100 | 100 | 100 | 100 | 100 | 100 | |
| 6 | 6 | 7 | 8 | 8 | 8 | |||
| Return Fan |
Staic Pessure (mmAq) |
80 | 80 | 80 | 80 | 80 | 80 | |
| Fan No # | 5¨ö | 6 | 6 | 6 | 6 | 6 | ||
| Coil Cap. |
Area (m 2) |
Kcal/h (2.7m/s) |
5.83 | 6 | 6.66 | 7.46 | 8.33 | 10 |
| Size | LxHxSTEP | 2800 X 1067 X 2 |
2800 X 1143 X 2 |
2800 X 1219 X 2 |
2800 X 1295 X 2 |
3200 X 1295 X 2 |
3200 X 1600 X 2 |
|
| Colling (6Row) |
Kcal/h | 366,000 | 376,000 | 418,000 | 468,000 | 522,000 | 627,000 | |
| Range | 329,000 ~ 366,000 |
367,000 ~ 376,000 |
377,000 ~ 418,000 |
419,000 ~ 468,000 |
469,000 ~ 522,000 |
523,000 |
||
| Colling (2Row) |
Kcal/h | 430,000 |
442,000 | 491,000 | 550,000 | 614,000 | 737,000 | |
| Range | 100,000 ~ 108,000 |
109,000 ~ 128,000 |
129,000 ~ 162,000 |
163,000 ~ 185,000 |
166,000 ~ 207,000 |
208,000 ~ 238,000 |
||
| Colling (4Row) |
Kcal/h | 540,000 | 556,000 | 617,000 | 691,000 | 772,000 | 926,000 | |
| Range | 486,000 ~ 540,000 |
543,000 ~ 556,000 |
557,000 ~ 617,000 |
618,000 ~ 691,000 |
692,000 ~ 772,000 |
773,000 ~ 926,000 |
||
