Fan Filter Unit

The fan filter unit is a device connected to the ceiling charging duct and
pressurizes clean air inside the chamber with a fan and supplies it indoors.

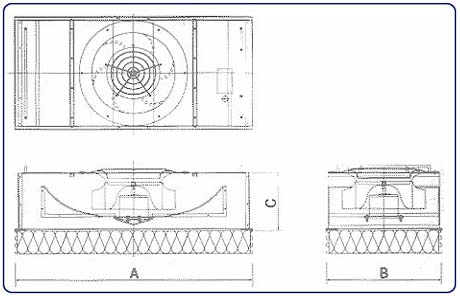

Dimension
Type A B C
FFU-600 1,172 572 338
FFU-900 1,172 872 338
FFU-1200 1,172 1,172 357
FFU-1400 1,172 722 349

Standard Specification
FFU-600
FFU-900
FFU-1200
FFU-1400
Air Velocity
0.35m/s
Full load
126W
160W
185W
156W
Main N.F.B
0.58A
0.75A
0.53A
0.56A
R.P.M
960RPM
980RPM
1088RPM
1030RPM
Sound level dB(A)
55DB
57DB
55DB
Illumination
1-2
Staic Pessure
9mmAq
Weight (kg)
25kg
25kg
45kg
35kg
ULPA FILTER
0.1299.9995%Over (D.O.P Test)
Power supply
1 x 220V x 60Hz
Dimension
1172Wx572Dx338
1172Wx872Dx338H
1172Wx1172Dx357H
1472Wx722Dx349H
