 Air Shower

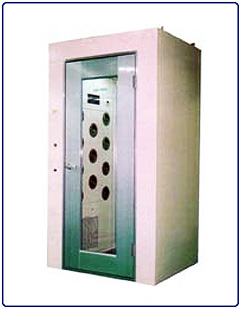

 Air Shower (Personal Air Shower Standard(Side Return))
The air shower prevents contaminants from entering a clean-room or bio clean-room when personnel are entering or exiting by cleaning their clothing with high-speed air to remove dust or microorganisms.

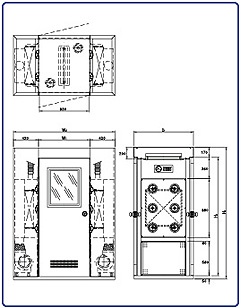

Dimension
| Type |
W1 |
W2 |
H1 |
H1 |
D |
| In 1 |
860 |
1,450 |
1,980 |
2,200 |
1,000 |
| In 2 |
860 |
1,700 |
1,980 |
2,200 |
1,000 |
| In 3~4 |
860 |
1,700 |
1,980 |
2,200 |
1,500 |
Standard Specification
| Type |
In 1 |
In 2 |
In 3~4 |
|
| Filter Efficiency |
0.3 ? DOP Test 99.97% |
| Filtering Element |
Pre Filter-Non Woven Fabric
Filter, Main Filter-HEPA Filter |
| Air Velocity(M/S) |
25m/s Over |
| Air Volume(CMM) |
17 |
34 |
34 |
| Number of Noxxles(EA) |
14 |
28 |
28 |
| Body |
Oven Baked Melamine coated
finish |
| ShoweringTime |
1~30sec(Adjustable) |
| Operation |
Sensor Touch, Air jet(Auto/Man)
Fan Timer |
| Power Source |
3Øx380/220Vx50/60Hz |
| Fl.Lamp |
20wx1EA |
20wx1EA |
40wx1EA |
Air Shower (Special Type Air Shower)
L-Type :
|
|
L-Type :
|
 |
|
 |
Air Shower (Air Shower for Materials and equipments)
| Without Base : |
|
L-Type :
|
 |
|
 |
¡Ø
Option: Auto Door Type
|
